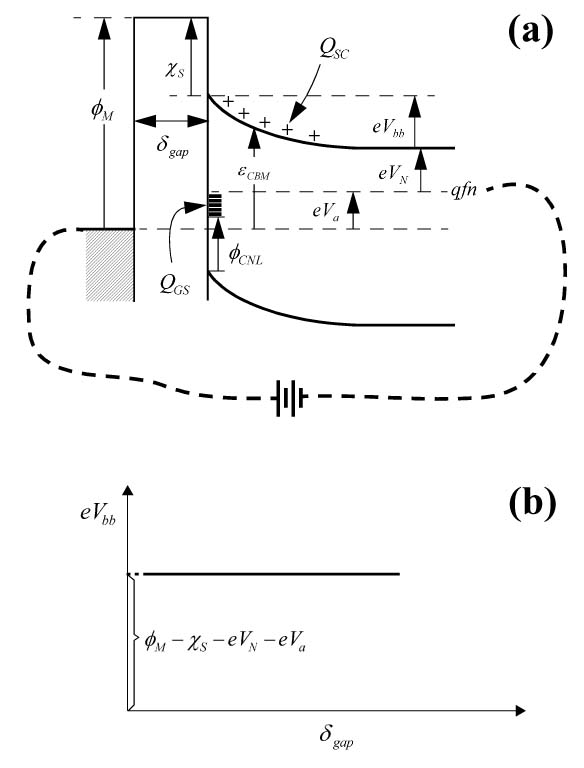

Illustration of a slilghtly modified (second) Gedanken experiment involving a semiconductor surface with or without surface states. An external bias of ( f_M - c_S - eV_bb - eV_N ) is applied to the semiconductor. (a) The band diagram. (b) The band bending as a function of the interface gap distance.



First "Gedanken" experiment
